Product Overview

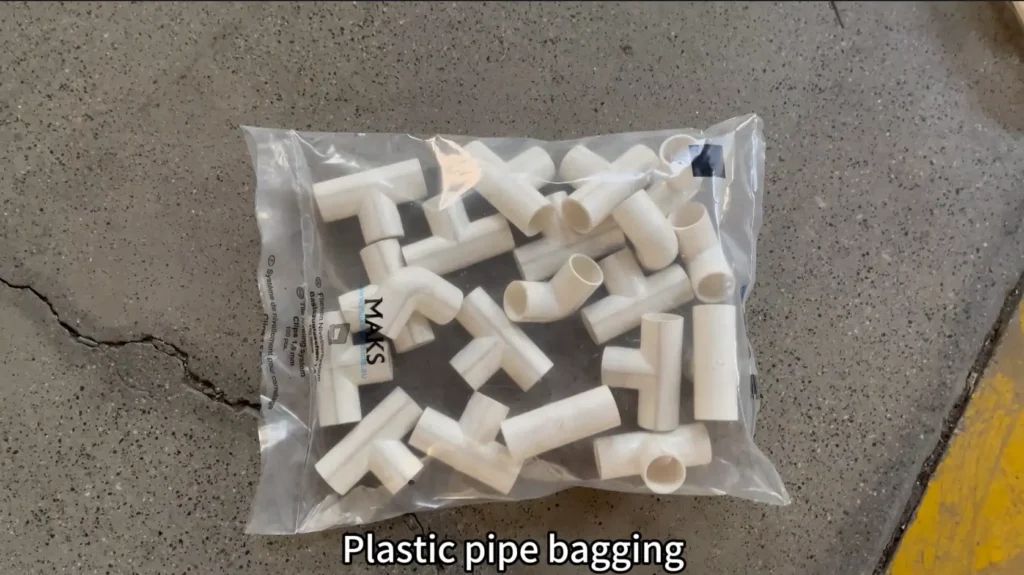

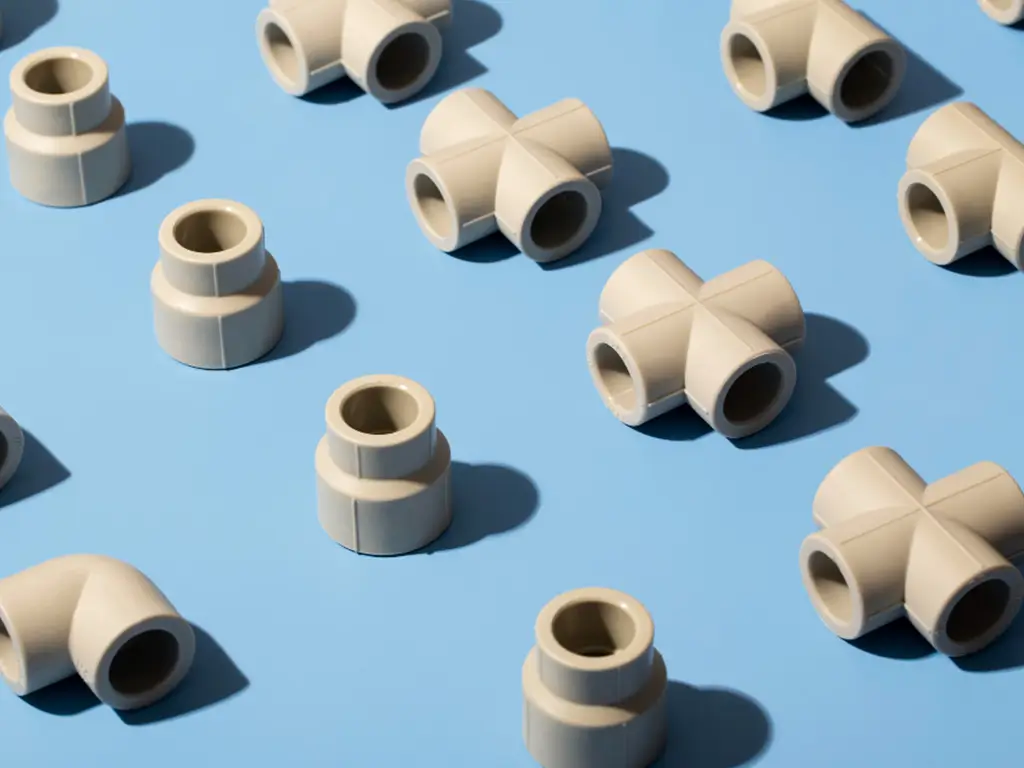

The PVC PPR Pipe Fittings Packing Machine (Model: FY-QT330) is designed for bagging pipe fittings of various specifications, including elbows, tees, pipe caps, and more. This fully automatic machine integrates counting, weighing, and packaging to improve production efficiency and ensure accurate quantity and weight for each package. Ideal for pipe fitting manufacturers and distributors, it reduces labor costs and increases packaging consistency.
Key Features & Advantages
- Integrated Counting & Weighing: Ensures precise quantity and weight for each bag.
- Mixed & Single-Type Packaging: Supports packaging of multiple types or single-type fittings in one bag.
- Flexible Bag Sizes: Handles bags from L 200–380 mm and W 200–330 mm.
- High Accuracy: Maintains consistent counting and weight for every package.
- Durable & Reliable: Industrial-grade construction for long-term stable operation.
- User-Friendly: Easy to operate with PLC control system and simple adjustments.
- Cost-Effective: Reduces manual labor and improves packaging efficiency.
- Compatible Material: Works with PE bags for secure and reliable packaging.
Applicable Industries & Scenarios
- Industries: PVC/PPR pipe fittings manufacturers, plumbing suppliers, construction material distributors.
- Scenarios:
- Packaging various pipe fittings for wholesale or retail.
- Preparing mixed-specification kits of pipe fittings for assembly or shipment.
- High-speed production lines requiring accurate weight and count per bag.
Technical Specifications
| Model | FY-QT330 |
| Packing Speed | 1–10 bags/min |
| Packing Material | PE |
| Packing Size | L 200–380 mm; W 200–330 mm |
| Packing Type | Mixed / Single |
| Counting Capacity | 1–10 pcs/bag; up to 1–20 kinds/bag |
Workflow
Feeding pipe fittings → Vibratory bowl feeding → Counting → Chain bucket conveyor → Bag forming → Product loading → Sealing → Finished bag output
Customization & Expansion Options
- Optional additional feeding bowls for higher throughput and multi-type feeding.
- Custom bag sizes to match specific pipe fitting dimensions.
- Optional labeling or printing module for batch codes or product information.
- Integration with checkweigher for quality control and reject station.
- Fully automated conveyor system for high-efficiency production lines.
Application Cases
- Pipe Fittings Manufacturer: Automated packaging of elbows, tees, and caps for wholesale distribution.
- Construction Material Supplier: Mixed-specification kits prepared for shipment to retailers or contractors.
- Plumbing Distributor: Accurate weight and quantity ensured for each bag in e-commerce and retail orders.
After-Sales Service
- Installation & Commissioning: On-site or remote support provided.
- Warranty: 12-month standard warranty with spare parts support.
- Technical Support: 24/7 online or phone assistance.
- Operator Training: Provided along with operation and maintenance manuals.
- Spare Parts Supply: Fast delivery of common wear parts for minimal downtime.
FAQ
Q: Can this machine pack multiple types of pipe fittings in one bag?
A: Yes, it supports up to 20 different types per bag.
Q: What is the typical counting capacity per bag?
A: 1–10 pcs per type.
Q: Which bag materials are supported?
A: PE bags are used for reliable and secure packaging.
Q: What is the packing speed?
A: 1–10 bags per minute depending on the size and type of pipe fittings.
