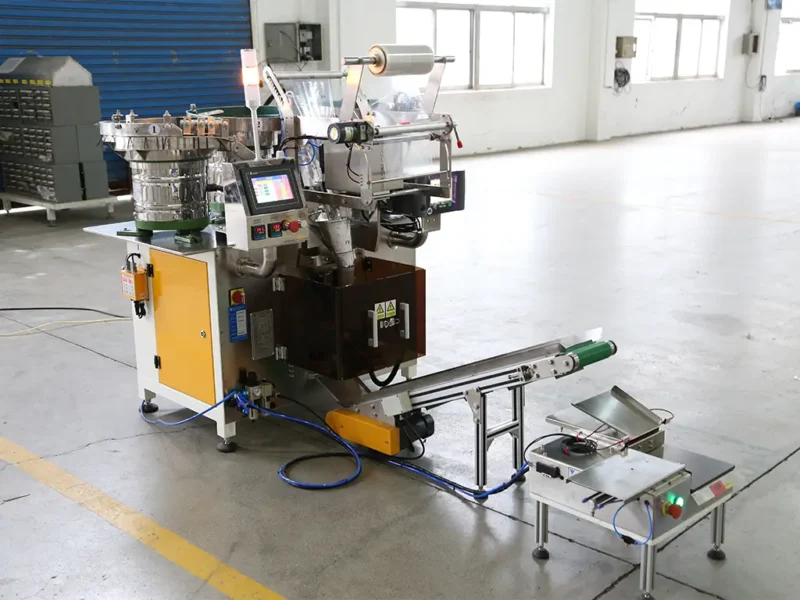

Screw Packing Machine Details
Screw Packing Machine with 3 Bowl Counting System are widely used for packaging fasteners across various industries:
- Fasteners: Screw, Bolt, Nut, Washer, Rivets, Nails.
- Plastic/Rubber Parts: Wall Anchor, Rubber O-Rings, Toys, Lego Building Bricks, Small Plastic Parts.
- Hardware Parts: Hardware Components, Hardware Connectors, Metal Parts Etc.
- Furniture Accessorles: Furniture Connectors, Furniture Fasteners, Furniture Fittings, Furniture Accessories, Door Handle, Hinge Etc.
- Others: Any small hardware or plastic part of regular or irregular shape.
Counting Packing Machine Samples
System Model
| Model | FY-240A-2 | FY-420A-2 |
| Packing size | L: 30-180mm, W: 50-140mm | L: 50-300mm, W: 50-200mm |
| Max film width | 300mm | 420mm |
| Packing material | PA/PE, PP/CPP, PET/PE | |
| Counting capacity | 1-20 pcs/bag; 1-2 types/bag | |
| Packing speed | 10-40 bag/min | |
| Power | AC220V/50-60Hz/2kW | |
| Machine size | 1500mm(L)* 1200mm(W)* 1650mm(H) | |
Video
Machine composition

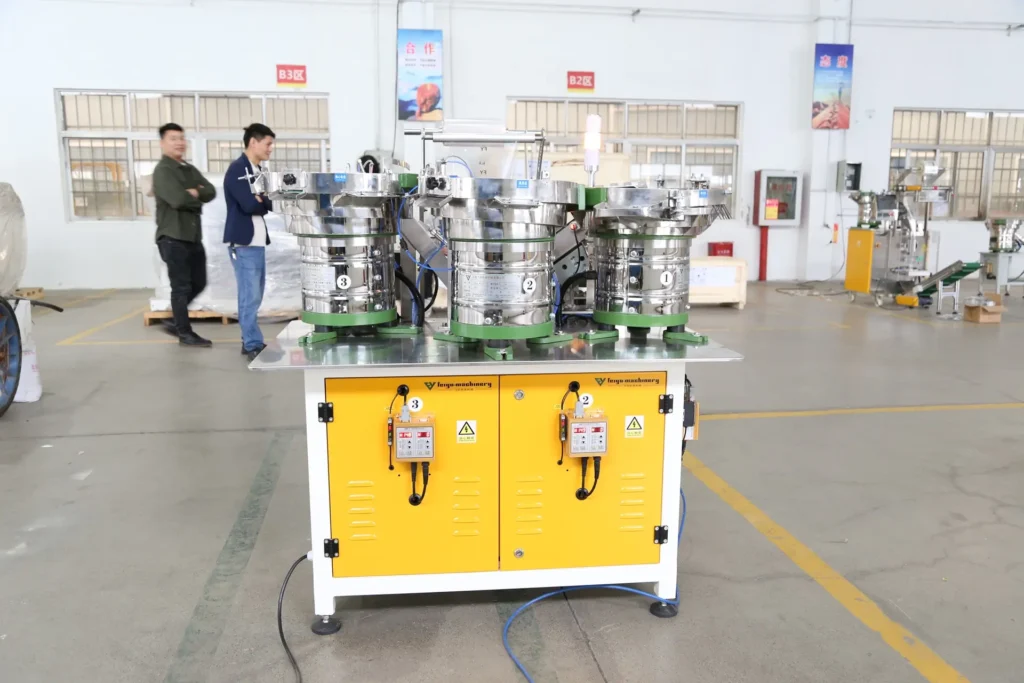

Three bowl design
The screw bagging machine adopts a double hopper system to process nuts and bolts of different specifications at the same time, improving production efficiency. Through precise counting and dispensing functions, it ensures that the quantity in each packaging bag is exactly the same to avoid waste.

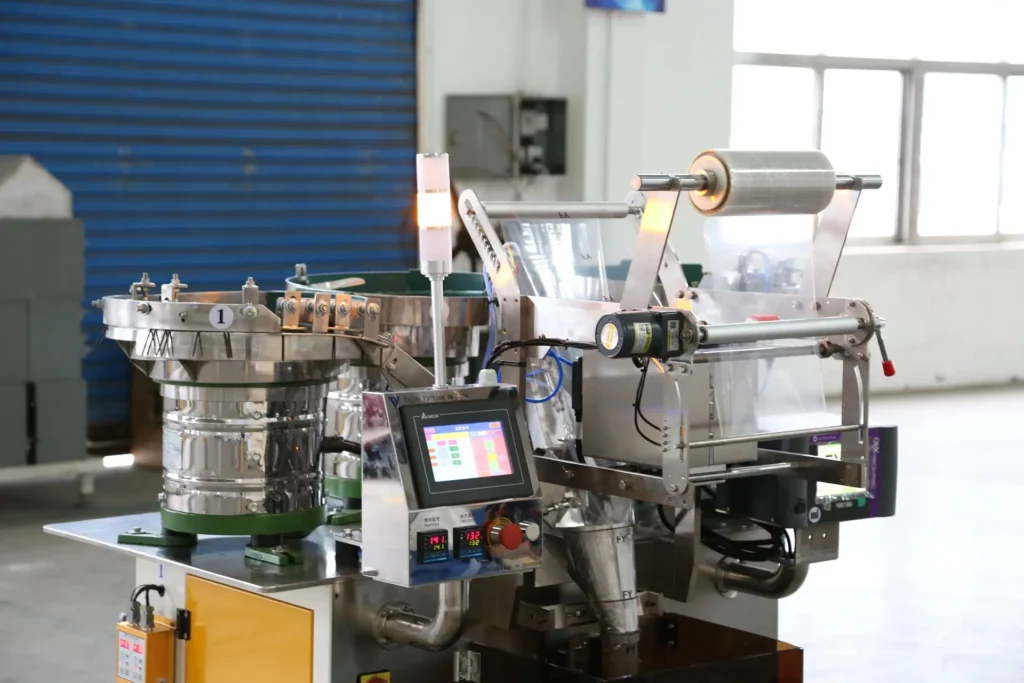

PLC Control System
7 inch touch screen, easy operation and multiple language for choice.
Fiber Counting System
Equipped with a high-precision fiber counting device, it automatically counts the number of screws to ensure accurate packaging. It then fills the predetermined quantity into each package, providing a reliable and consistent output.
Adjustable parameters
Packaging parameters such as packaging quantity, speed, bag size, etc. are easy to set to suit various production requirements and adapt to different types of screws and hardware.
Bag making system
The system can automatically make bags from rolls and adjust bag size, sealing method, etc. according to product requirements
Not only for screws, but also for other small hardware components such as nuts, bolts, washers and plastic parts, making it a versatile asset in your packaging system.
