Automatic Hardware Packing Machine
Automatic Hardware Packing Machine It is suitable for Hardware mixed packaging of 1-40 kinds of items, adopts PLC control system, and is easy to operate. It can provide automatic ordering, counting, packing and printing. Equipped with exhaust, printer, labeller, conveyor belt and checkweigher makes it even better.
Model:FY-240C
Packing speed:10-60 bags/min
Packing material:PP/PA/PE/CPP/PET
Packing size:L20-180mm; W50-140mm

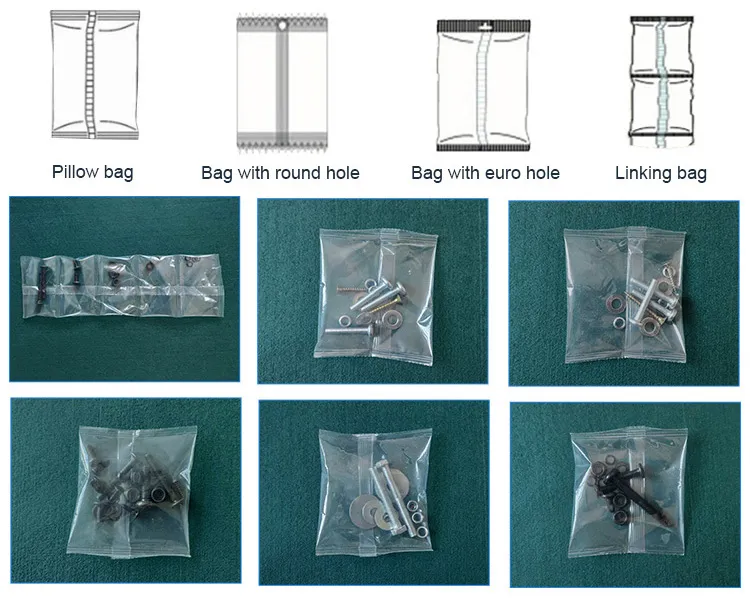

Packing type:Mixed/Single/Compartment
Counting capacity:1-20pcs/bag; 1-30kinds/bag
Automatic hardware packing machine, suitable for hardware mixed packaging of 1-40 items, adopts PLC control system, multiple language options, and easy operation.
Automatic hardware packing machine has automatic counting or weighing combined measurement methods, packaging, printing and other functions
The finished bag has strong sealing performance, smooth and generous shape, high efficiency and durability.
Equipped with exhaust, printer, labeller, conveyor belt and checkweigher to make it even better.

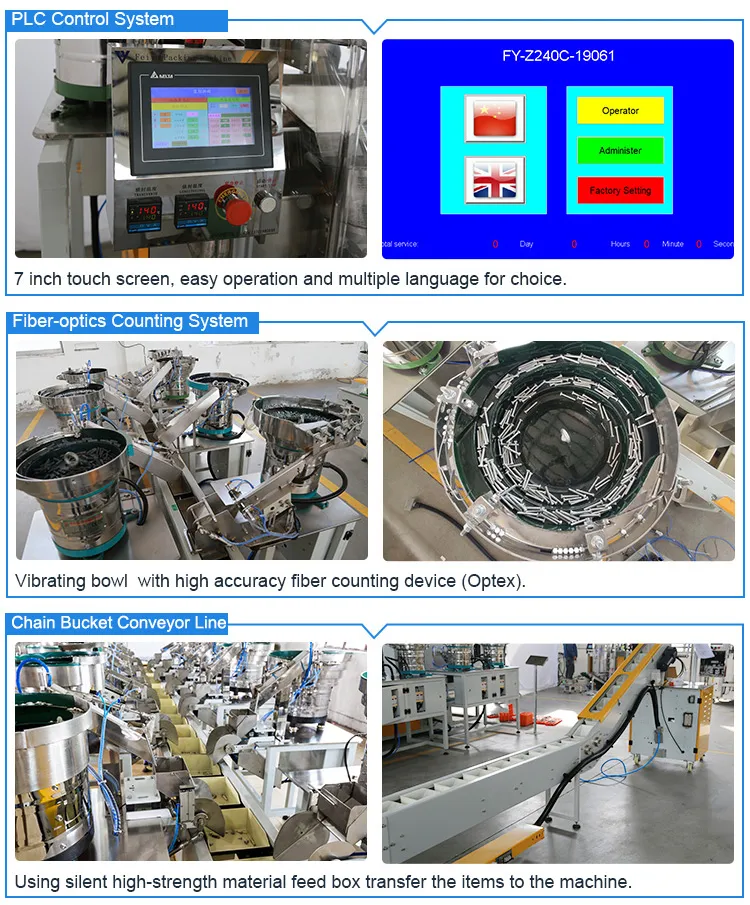

PLC control system
7 inch touch screen, easy operation and multiple language for choice.
Fiber-optics Counting System

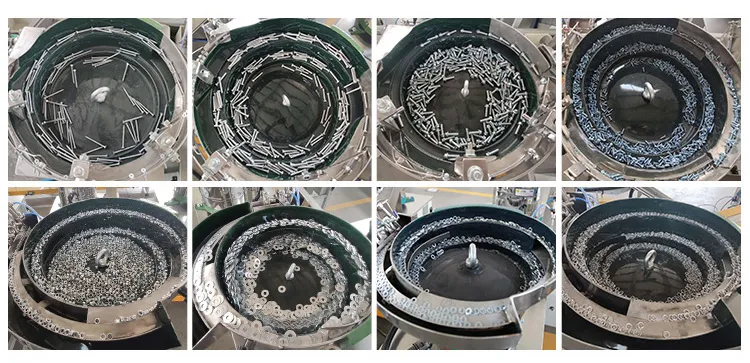

Vibrating bowl with high accuracy fiber counting device (Optex).
Chain Bucket Conveyor Line
Using silent high-strength material feed box transfer the items to the machine.

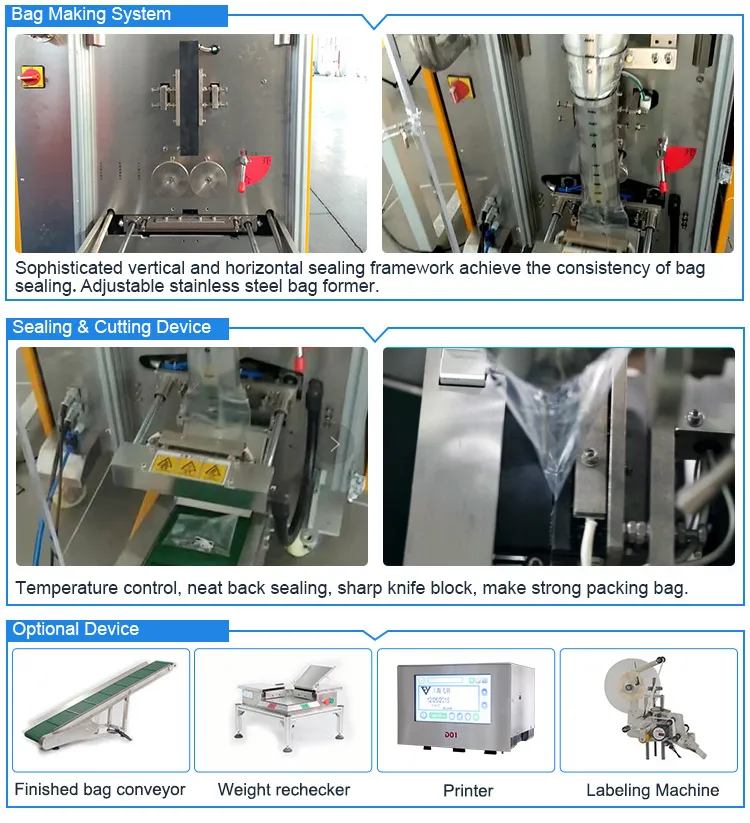

Bag Making System
Sophisticated vertical and horizontal sealing framework achieve the consistency of bag sealing
Sealing and cutting device
Temperature control, neat back sealing, sharp knife block, make strong packing bag
| Model | FY-240C | FY-420C |
| Packing size | L: 30-180mm, W: 50-140mm | L: 50-300mm, W: 50-200mm |
| Max film width | 300mm | 420mm |
| Packing material | PA/PE, PP/CPP, PET/PE | |
| Counting capacity | 1-20pcs/bag; 1-40 kinds/bag | |
| Packing speed | 10-60 bag/min | |
| Power | AC220V/50HZ/2LW | |
| Machine size | L*W*H: (n/2*600+2200mm)* 1500* 1650mm, n=the Qty of vibration bowl | |
Optional Device
