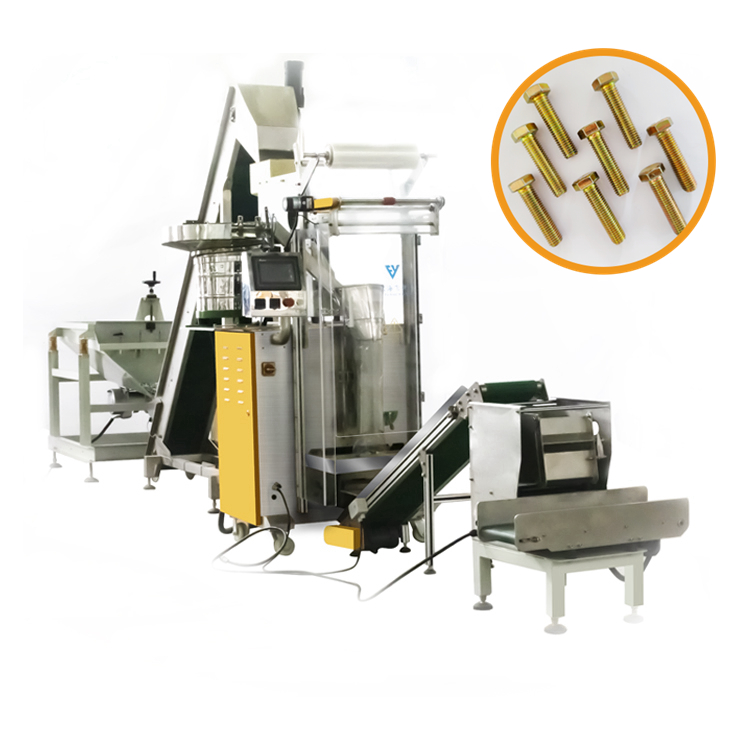

Screw packing machine

High quality screw packing machine is suitable for single product packaging and 2-3 mixed product packaging, and it is easy to operate with the PLC control system. Strong sealing, smooth and elegant bag shape, high efficiency and durability are the preferred elements. It can provide automatic order placement, counting, packaging and printing. Equipped with exhaust, printer, labeller, conveyor belt and checkweigher makes it even better.

Model: FY-240A
Packing size: L20-180mm; W50-85mm
Power supply: AC220v/50hz/2KW
Packing speed: 10-70 bags/min
Packaging material: PP/PA/PE/CPP/PET
Counting capacity: 1-20 pieces/bag; 1-3 kinds/bag
Machine size: L1500mm, W1200mm, H1650mm

-Customized service-
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Details

The screw packing machine is an efficient, accurate and reliable automatic packing equipment, which is specially designed for the packing of screw, bolts and other fasteners. The machine adopts advanced technology, which can quickly and accurately complete counting, separation, positioning, bagging and other operations, which greatly improves the production efficiency and packaging quality

With:PLC control system: 7-inch touch screen, easy to operate, multiple language options. User-defined language interface
Grant System: Advanced Vertical and Horizontal Seal Frames Achieve Bag Consistency. Automatic upper, lower and back seal.
Optical fiber counting system: Vibrating bowl with high-precision optical fiber counting device (Optex), orbital vibrating bowl is suitable for screws, bolts, gaskets, hardware, fasteners, etc.
Re-inspection scale: adopt precision weighing sensor and instrument, adapt to the control method and software developed by our company. Can identify 0.01g tolerance weight.

Details Description

Samples

Parameters

ModelFY-240AFY-420A
Packing sizeL: 30-180mm, W: 50-140mmL: 50-300mm, W: 50-200mm
Max film width300mm420mm
Packing materialPA/PE, PP/CPP, PET/PE
Counting capacity1-20 pcs/bag; 1-3 types/bag
Packing speed10-70 bag/min
PowerAC220V/50-60Hz/2kW
Machine size1500mm(L)* 1200mm(W)* 1650mm(H)

video

More videos

machine structure

Operation Process

Screw Packing Machine
